Memory Layout of C programs
Memory Layout of C Programs 这篇文章主要讲C程序中的内存布局。
main

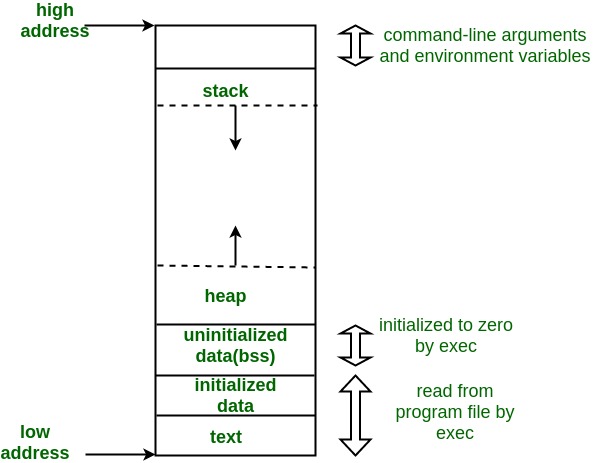

A typical memory representation of a C program consists of the following sections.
Text segment (i.e. instructions)
frequently executed programsread-only
Initialized data segment
the global variables and static variables that are initialized by the programmerThis segment can be further classified into the initialized read-only area and the initialized read-write area.
Uninitialized data segment (bss)
global variables and static variables that are initialized to zero or do not have explicit initialization in source codeData in this segment is initialized by the kernel to arithmetic 0 before the program starts executing uninitialized data.
- Heap
The Heap area is managed by malloc, realloc, and free Stack
Stack, where automatic variables are stored, along with information that is saved each time a function is called. Each time a function is called, the address of where to return to and certain information about the caller’s environment, such as some of the machine registers, are saved on the stack. The newly called function then allocates room on the stack for its automatic and temporary variables.局部变量、函数调用信息、中断现场保留信息
test
#include <stdio.h>
int global; /* Uninitialized variable stored in bss*/
int main(void)
{
//static int i; /* Uninitialized static variable stored in bss */
static int i = 0; /* Uninitialized static variable stored in bss */
//static int j = 10; /* Initialized static variable stored in Initialized data segmemt */
return 0;
}# gaoliang @ gaoliang-pc in ~/work/leetcode/test on git:master x [10:50:29]
$ size memory_test
text data bss dec hex filename
1418 544 16 1978 7ba memory_testobjdump -s -d memory_layout > memory_layout_obj.txtmemory_layout: file format elf64-x86-64
